How Projector Works?

projector works

In the modern technology, projectors stand as captivating devices that have seamlessly woven themselves into our daily lives, illuminating screens and surfaces with vivid imagery and dynamic presentations. These ingenious tools are the conduits through which digital content comes alive on grand screens in theaters, informative presentations in conference rooms, and immersive experiences in home theaters. But have you ever wondered about the intricate symphony of processes that transpire within a projector to create these mesmerizing displays? Let’s embark on a journey to demystify the workings of projectors, unveiling the secrets that project light into our world.

how projector works

The Luminary Genesis: Light Source Selection

At the core of every projector’s operation lies the careful choice of a light source, a pivotal decision that determines the quality and vibrancy of the projected image. From the early incandescent lamps to the more contemporary LEDs and lasers, these sources emit light in different spectra, each with its unique advantages. Lasers, for instance, offer a broader color gamut and enhanced brightness, rendering images with striking realism. Once selected, this light source becomes the radiant genesis, ready to be transformed into captivating visuals.

Dancing with Mirrors: The Reflective Tango

As the luminous journey commences, the emitted light encounters an intricate dance with mirrors and lenses, guiding and shaping its path. The light is initially honed by an array of lenses, refining its trajectory and size. It then encounters an ingenious interplay of mirrors – some reflecting the light towards a Digital Micromirror Device (DMD) chip, while others aid in fine-tuning focus and alignment. The DMD chip, adorned with an array of micro mirrors corresponding to individual pixels, tilts rapidly to reflect light either towards or away from the projector’s lens. This deft manipulation of light gives birth to the visual pixels that collectively form the projected image.

Color Chronicles: The Role of Dichroic Prisms

The dazzling array of colors that grace the projected image emerges courtesy of dichroic prisms. These prisms act as meticulous color sculptors, breaking down the white light from the source into its fundamental hues – red, green, and blue. Each color is then filtered and precisely directed towards its designated path, ensuring that they reconvene at just the right coordinates to form a harmonious and true-to-life image. This intricate choreography of colors, guided by dichroic prisms, is a key protagonist in the projector’s spellbinding narrative.

Illusion of Motion: Rapid Succession and Frame Rates

What lends fluidity and motion to the projected image is the concept of rapid succession. Projectors meticulously display a sequence of individual frames in quick succession, each slightly altered from the previous one. When this flurry of frames whizzes by at a sufficiently high speed, the human eye perceives them as a continuous, moving image. The number of frames displayed per second, known as the frame rate, profoundly influences the smoothness of motion. Higher frame rates, often denoted as frames per second (fps), contribute to a more seamless and immersive viewing experience.

The Final Unveiling: Projection onto Screens

With the image immaculately crafted within the projector, it’s time for its grand reveal onto a projection screen. The projector lens projects the meticulously curated image outward, where it is diffused onto the screen’s surface. The screen, designed to reflect and scatter light uniformly, ensures that the image appears vibrant and well-defined from various angles. Various screen materials, including matte white and high-gain surfaces, cater to specific environments, allowing for optimized visual experiences in diverse settings.

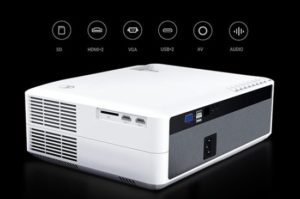

From Analog to Digital: The Evolution of Connectivity

The advent of digital technology has propelled projectors into the digital age, opening avenues for versatile connectivity. Gone are the days of cumbersome analog connections; projectors now embrace HDMI, DisplayPort, and wireless technologies for seamless content transmission. These interfaces enable effortless hook-up to a plethora of devices – from laptops and gaming consoles to media players and smartphones – expanding the scope of projection possibilities and experiences.

projector Analog to Digital:

Sharper Focus: The Art of Keystone Correction

Amidst the symphony of projector mechanics, a challenge arises: maintaining geometric integrity. Keystone distortion, caused when a projector is tilted, can lead to a trapezoidal image rather than a true rectangle. To combat this, projectors often incorporate keystone correction mechanisms, either manual or automatic. These corrective measures subtly tweak the image’s dimensions, ensuring that the projected visuals retain their intended proportions, irrespective of the projector’s placement.

Evolving Dimensions: Pico Projectors and Beyond

As technology continues to evolve, projectors are shrinking in size while expanding in capabilities. Pico projectors, for instance, have emerged as pocket-sized powerhouses that allow projection on the go. These miniaturized marvels, often no larger than a smartphone, can transform any surface into a canvas for visual display. Their applications span from impromptu business presentations to outdoor movie nights, underscoring the versatility and innovation coursing through the world of projection technology.

The Veritable Cineaste: Projectors in Cinemas

While the discussion has predominantly revolved around projectors in personal and small-scale settings, the grandeur of cinemas deserves a dedicated spotlight. In cinematic projection, the mechanisms amplify in scale and precision. High-end projectors, often employing cutting-edge laser technology, cast images onto massive screens with astonishing clarity and brilliance. The synchronization of impeccable sound systems with these visuals creates an immersive cinematic experience that continues to draw audiences to theaters worldwide.

Conclusion: Weaving Wonders of Light

In a world where visual experiences form an integral part of our lives, projectors stand as unsung magicians, weaving captivating tales with beams of light. From the initial selection of light sources to the final unveiling on screens large and small, projectors encapsulate a synergy of optics, mechanics, and digital prowess. As technology perpetually refines and redefines itself, the realm of projectors keeps pace, promising ever more mesmerizing and immersive visual narratives. So, the next time you find yourself enchanted by a projected image, take a moment to ponder the intricate symphony of ingenuity that fuels this modern marvel.
